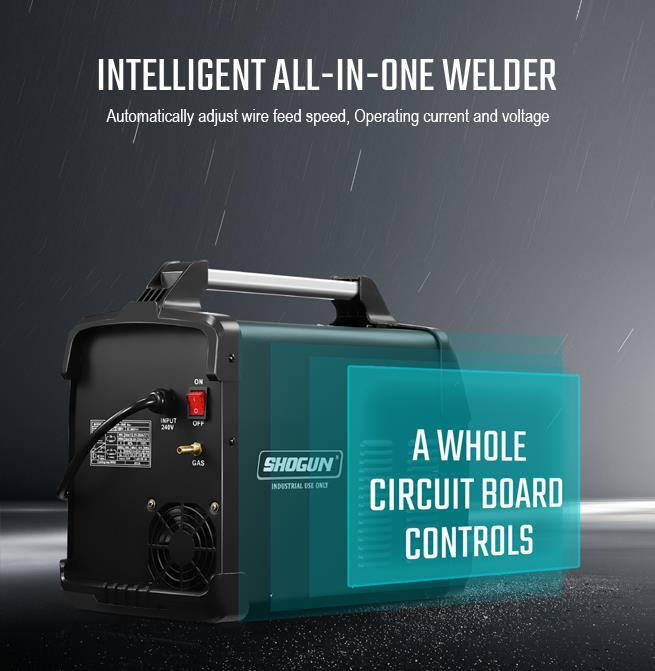

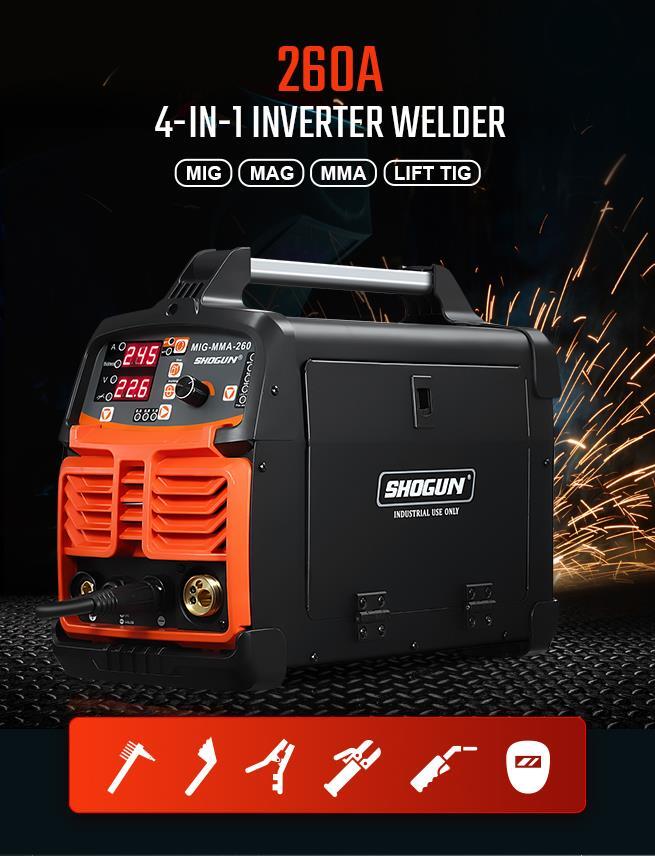

260Amp Inverter Welder MIG MAG TIG ARC MMA Gas Gasless DC Power Welding Machine
Product Description:
The advanced All IN One DC Inverter Welder is a powerful helper in welding. The welding machine boasts versatile technology, including MIG/MAG/MMA/TIG LIFT/GASLESS FULUX technology, with current ranging from 50 to 260Amp. The IGBT inverter technology attributes to a reliable quality and stable performance, and the electric reactor control allows for a welding process with little splash and beautiful welding seam. The welder can handle a wide range of metals, such as steel, iron, stainless steel, copper, and more. To against over-current, over-voltage and over-heating, an automatic protection system as well as a high-speed cooling fan are designed. The closed-circuit feedback with constant voltage output also works well in preventing voltage fluctuation. The 2T/4T torch control and self-locking make it convenient to focus on the welding job. Enjoy the great pleasure out of a perfect welding job with this All IN One DC Inverter Welder.
Features:
- Latest MIG/MAG/MMA/TIG LIFT/GASLESS FULUX technology

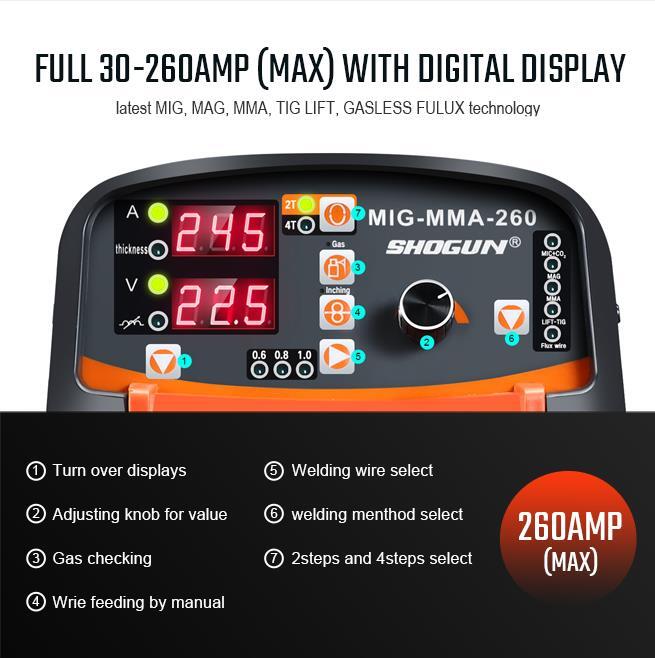

- Full 50-260Amp(max) with digital display
- IGBT inverter technology, current mode control, reliable quality and stable performance
- Extra anti-viscous heat arc with thrust function
- MIG/MAG welding process with gas-less flux or gas shielded welding wires.
- Suitable for a wide range of metals: steel, Iron, stainless steel copper, and more
- Electric reactor control, stable welding process with little splash, deep welding pool and beautiful welding seam
- Automatic Protection Function for Over-current, Over-voltage and Over-heating
- Closed circuit feedback with constant voltage output, good resistance to voltage fluctuation
- Intelligent all-in-one welder, automatically adjust wire feed speed, operating current and voltage
- Accepts 5kg spools from 0. 6-1mm

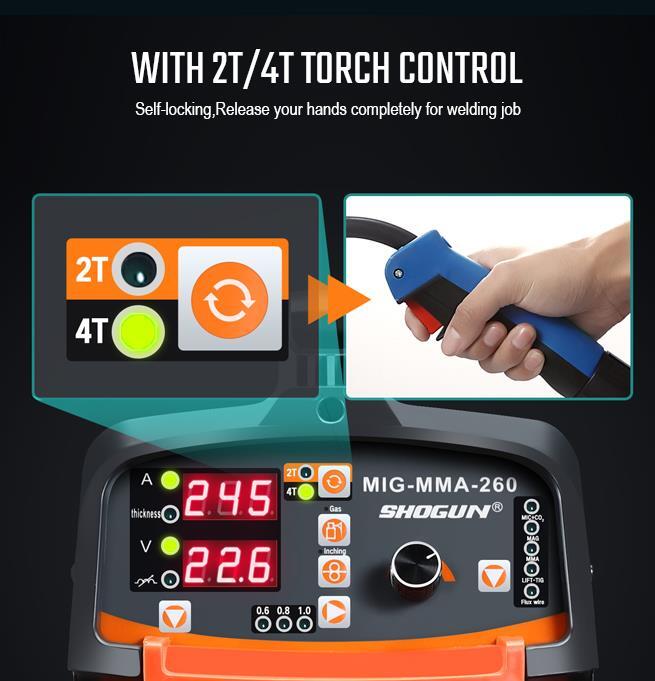

- With 2T/4T torch control, Self-locking, release your hands completely for welding job.
- Intelligent high-speed cooling fan design, large radiator, ensuring better performance and durability
- Slow wire-feeding for arc start and tip ball removing after welding ensure high success rate of arc start
Specification:
|
Machine type |
Intelligent all-in-one welder |
|
Power voltage |
240V 50Hz (15 A plug) |
|
No-load voltage |
65V |
|
Current range |
50-260 Amps (max) |
|
Power factor: |
0.93 |
|
Efficiency |
85%(temperature affects) |
|
Protection class |
IP23 |
|
Insulation class |
F |
|
Rated duty cycle |
60% |
|
Welder type |
MIG/MAG/MMA/TIG LIFT/GASLESS FULUX |
|
Type of wire feeder |
Built-in 2 roller single drive |
|
Operation |
Gas and gasless |
|
Wire speed |
2-15m/min |
|
Gas post-flow time |
1±0.5s |
|
Welding spool |
0.6mm-1mm |
|
Power plug |
Australian standard |
|
Package |
1 x inverter welder 1 x electrode holder 1 x earth clamp 1 x welder mask 1 x wire brush 1 x user manual |
|
Carton dimensions |
56x28x42cm |
|
Carton weight |
14.5kg |
Shipping
We offer free shipping Australia wide; all items are shipped from our Melbourne warehouse after payment is confirmed. Delivery normally takes 4-7 days (usually faster) depending on delivery location. All shipping is set as Authorize to Leave (ATL).
Packaging maybe repacked to compromise on economic shipping size requirements.
Item cover 6 months manufacture warranty. There will be a 15% restocking fee for change of mind.
We require a postal address NOT a PO Box or Parcel Locker. Please ensure you provide a correct postal address and a daytime contact number or it may cause a delay in your shipment.
Due to the limited access of our carriers, there are certain postcodes that we are unable to deliver to. Please refer to the list below for more details.
|
Postcode |
State |
|
0800-0999 |
NT |
|
2641 |
NSW |
|
4185,4450-4499, 4680, 4700-4805, 9920-9959 |
QLD |
|
4806-4899, 4900-4999, 9960-9999 |
QLD |
|
5701 |
SA |
|
6055 |
WA |
|
7151 |
TAS |
|
6215-6699 |
WA |
|
6700-6799 |
WA |
We aim to provide the best saving for our customers. Item maybe sent via different courier services with different tracking no. in order to fit the economical shipping requirement for item size and weight. As a result, parcels may arrive in different day. Thanks for the understanding
