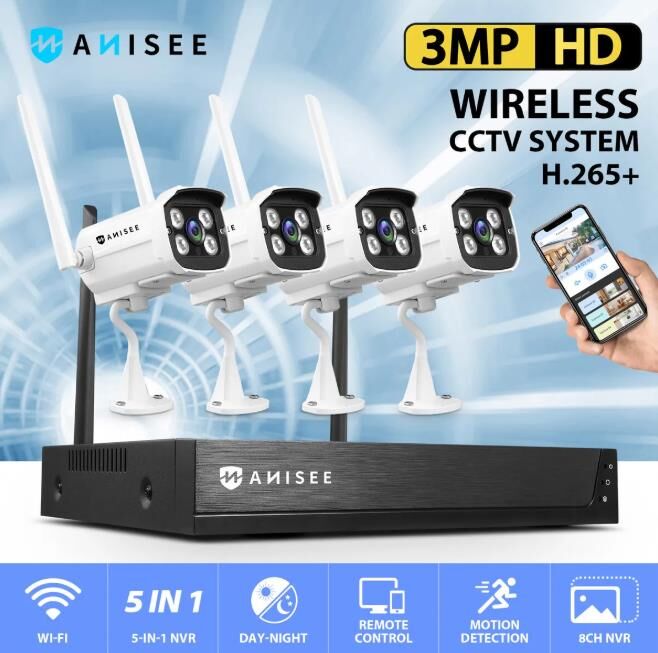

3MP Security Camera Set Wireless Home CCTV Indoor Outdoor Surveillance System

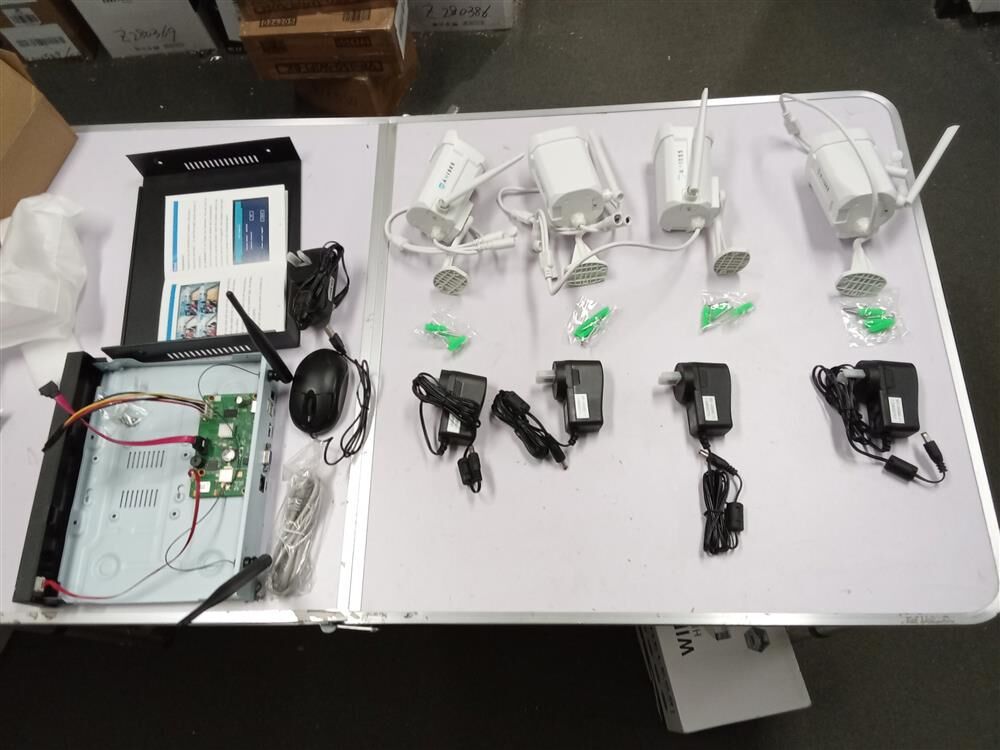

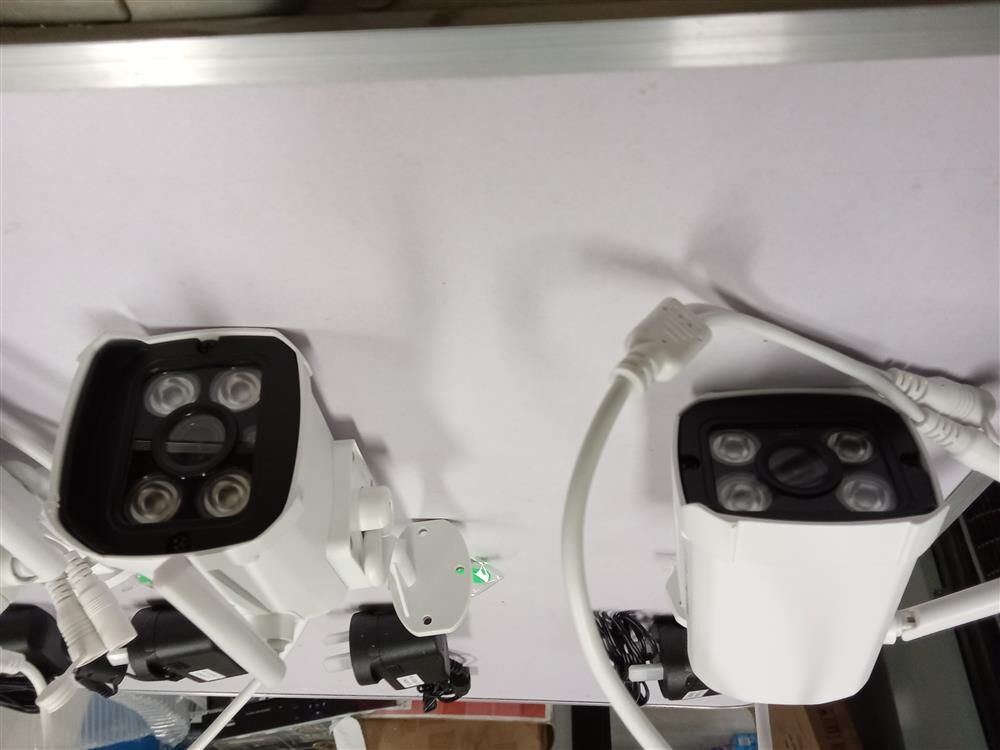

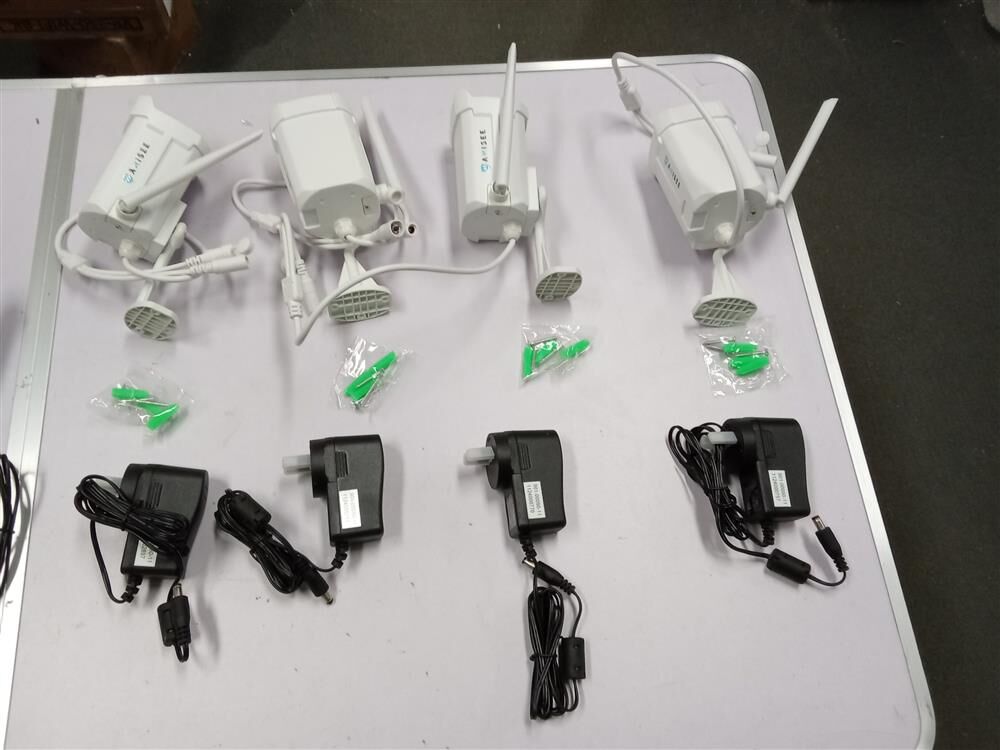

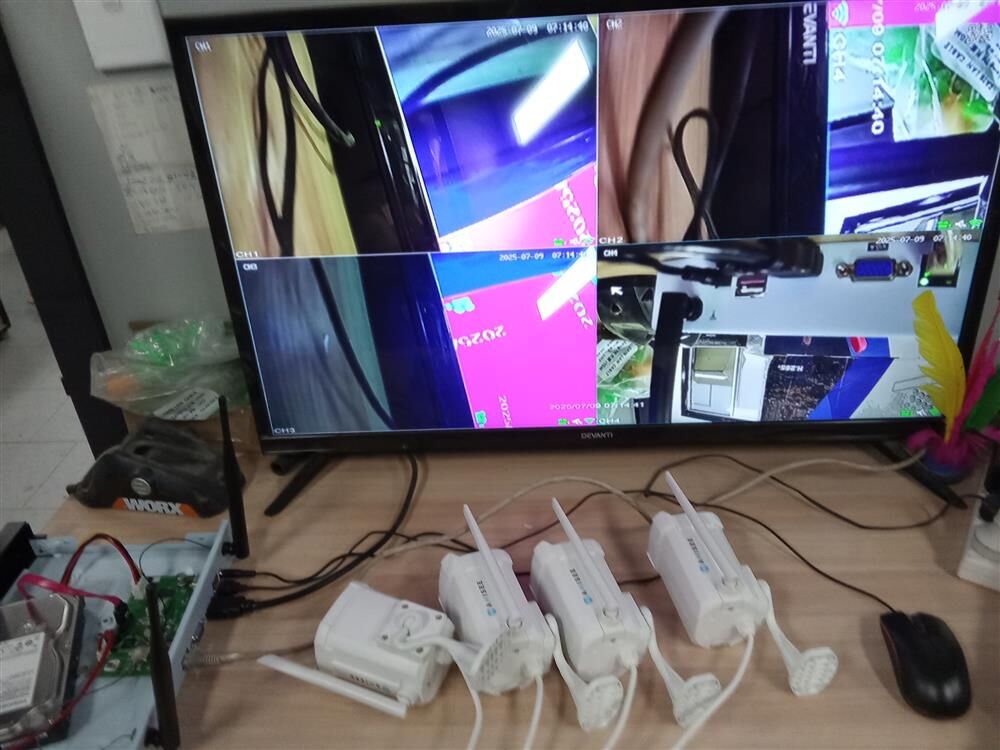

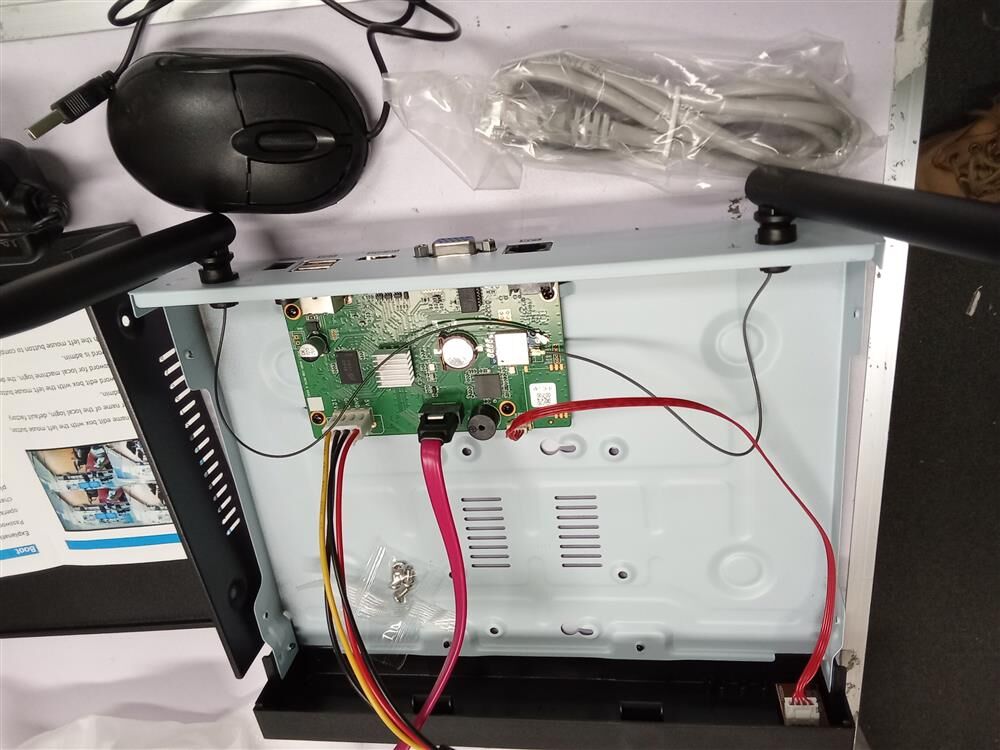

Note: Item is returned stock as late shipping. Please refer to photo for more detail
product
Monitor every corner and safeguard your home from any threat with this 3MP wireless security camera set. Our home security camera captures every detail with its 3MP H.265+ wireless network recorder and 4pcs 3MP wireless cameras, providing stunning image quality. Enjoy a transmission distance of up to 800m in open space, ensuring comprehensive coverage for your property. Thanks to the motion detection feature, the CCTV can protect your house by triggering instant alerts and alarm outputs to keep you informed. Moreover, using the Android/Apple mobile app can help you monitor and control this surveillance camera from anywhere, giving you peace of mind even when you’re away. Our home camera system can connect seamlessly with P2P IP PRO technology for fast and reliable remote access. Experience plug-and-play simplicity, hassle-free operation, and effortless setup. It is perfect for diverse settings, such as homes, offices, small businesses, or retail stores.
features
- Automatic wireless connection, plug-and-play
- 3MP H.265+ wireless network recorder and 4pcs 3MP wireless cameras

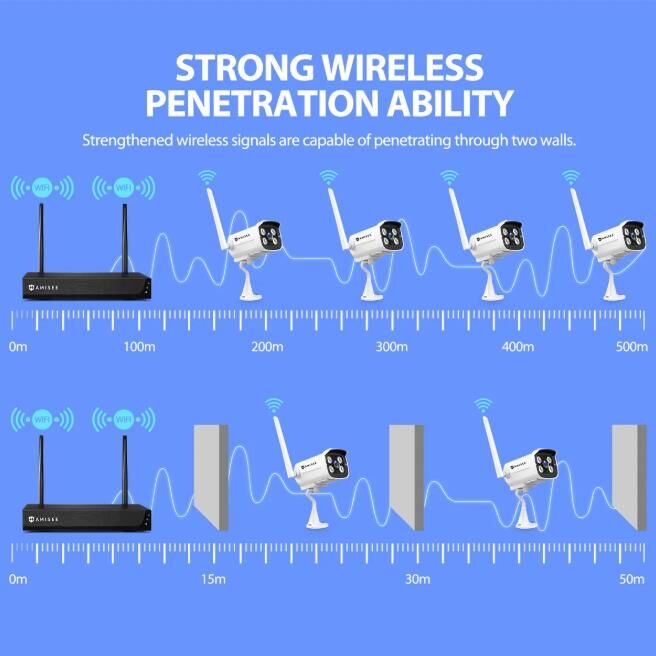

- In open space with no obstacle, the transmission distance is up to 800 metres
- One-push to configure
- Support alarm push motion detection and alarm output(voice/email/FTP etc.)
- Support Android/Apple cell phone or pad by LAN & WAN visit and control
- P2P IP PRO, fluent and fast remote access
- Suitable for homes, offices, small businesses, and retail stores
- Easy to install, user-friendly operation
Specification
|
IP Camera |
||
|
Camera |
3MP Wireless IP Camera |
|
|
Image Sensor |
1/2.9" Megapixel CMOS |
|
|
Lens |
4mm, Horizontal Field of View: 75° |
|
|
Lens Mount |
M12 |
|
|
Min. Illumination |
Colour: 0.01Lux@(F1.2, AGC ON) B/W: 0.001Lux@(F1.2, AGC ON), 0Lux@(IRled ON) |
|
|
S/N Ratio |
≥39dB |
|
|
Shutter Speed |
1/5-1/20000s |
|
|
Day & Night |
Day/Night/External Control (IR Cut Filter) |
|
|
AGC |
Auto/Manual |
|
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
|
Wide Dynamic Range |
Digital Wide Dynamic Range |
|
|
Digital Noise Reduction |
2DNR, 3DNR |
|
|
Video Compression |
H.265 Main Profile/H.264 Main Profile/M-JPEG |
|
|
Audio Compression |
G711, PCM |
|
|
Max. Image Resolution |
2560x1440@20fps |
|
|
Image Resolution
|
Main stream (2560x1440, 1280×960, 1280×720, 720×576, 640×480) Sub-stream (640×480, 352×288, 320×240, 176×144) |
|
|
Bitrate |
CBR/VBR, Bitrate: 32Kbps-10Mbps Variable |
|
|
Motion Detect |
Support |
|
|
Privacy Zone Masking |
4 Privacy Masks Programmable |
|
|
P2P |
Android.IOS |
|
|
Protocols |
TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P |
|
|
Onvif |
Non-Support |
|
|
Wireless
|
Transmission Distance: More than 800 metres with no obstacle, more than 30 metres if penetrating the wall. The actual transmission distance depends on the situation |
|
|
Power |
12VDC@0.12A |
|
|
Dimensions |
38x38x5mm |
|
|
Working Temperature |
-30°C-60°C, Humidity≤90%RH (Unsupported-condensing) |
|
|
NVR |
||
|
NVR |
4CH Wireless 3MP HD-NVR |
|
|
System |
Main Processor |
Hi3536D |
|
Operating System |
Embedded Linux |
|
|
Video |
Video Compression |
H.265 High Profile/H.264 Main Profile |
|
Video Output |
720P60, XGA, 3MP60 |
|
|
Video Input(IP) |
4x3MP/4x960P/4x720P |
|
|
Audio |
Audio Compression |
G.711 |
|
Intercom |
None |
|
|
Record & Playback |
Recording Mode |
Manual/Alarm/Video Detection/Continuous |
|
Local Playback |
1x3MP |
|
|
Storage & Backup |
Record storage |
Network |
|
Backup Mode |
Network Backup, USB Hard Disk |
|
|
Network Control |
Protocol |
TCP/IP, HTTP, DHCP, UDP, RTP, RTSP, FTP, NTP, ONVIF, SADP, P2P |
|
Wireless |
Frequency |
2.4G |
|
Antenna Structure |
2 x 2MIMO |
|
|
Distance |
More than 800 metres with no obstacle, more than 30 metres if penetrating the wall, the actual transmission distance according to the situation |
|
|

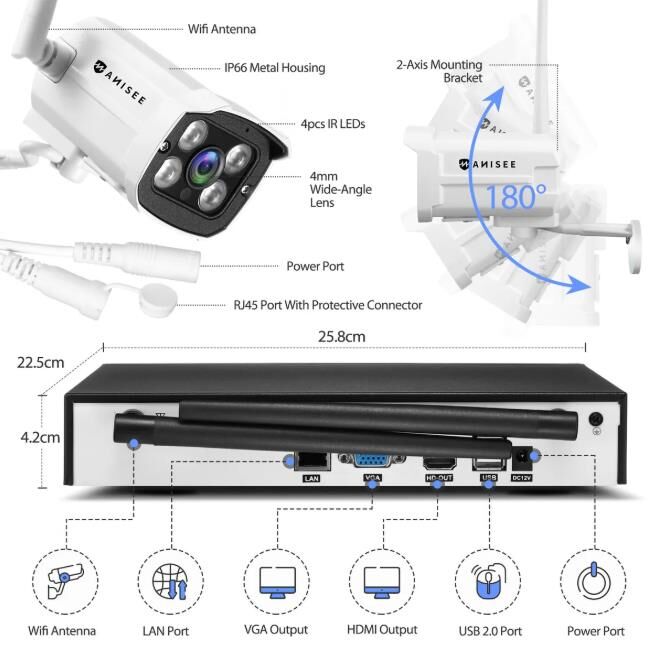

Interface |
Video Output |
1ch HDMI, 1ch VGA Output |
|
Audio I/O |
None |
|
|
Alarm I/O |
None |
|
|
Network Interface |
1xRJ45 10M/100M Adaptive Ethernet Port |
|
|
USB |
2xUSB 2.0 PORT |
|
|
Hard Disk |
1 SATA (Up to 4TB) |
|
|
Other |
Power Supply |
DC+12V/3A |
|
Power Consumption |
5W (Without HDD) |
|
|
Work Environment |
Temperature: -10°C - +55°C Humidity: 10%-90%RH |
|
Shipping
We offer free shipping to most metropolitian areas Australia wide; all items are shipped from our Melbourne warehouse after payment is confirmed. Delivery normally takes 4-7 days (usually faster) depending on delivery location. All shipping is set as Authorize to Leave (ATL).
Packaging maybe repacked to compromise on economic shipping size requirements.
Item cover 6 months manufacture warranty. There will be a 15% restocking fee for change of mind.
We require a postal address NOT a PO Box or Parcel Locker. Please ensure you provide a correct postal address and a daytime contact number or it may cause a delay in your shipment.
Due to the limited access of our carriers, there are certain postcodes that we are unable to deliver to. Please refer to the list below for more details.
|
Postcode |
State |
|
0800-0999 |
NT |
|
2641 |
NSW |
|
4185, 4300-4699, 4450-4805, 9920-9959 |
QLD |
|
4806-4899, 4900-4999, 9960-9999 |
QLD |
|
7151 |
SA |
|
6055 |
TAS |
|
6055 |
WA |
|
6215-6699 |
WA |
|
6700-6799 |
WA |
We aim to provide the best saving for our customers. Item maybe sent via different courier services with different tracking no. in order to fit the economical shipping requirement for item size and weight. As a result, parcels may arrive in different day. Thanks for the understanding
| SKU | 334188 |
| Model | HC-9501-K4-3MPV |
| Type | Complete System |
| MPN | 334188 |
| Number of Channels | 4 |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.260m |
| Shipping Length | 0.290m |
