AU MPPT 20A 12/24V Solar Panel Regulator Charge Controller Auto LCD 3 Timer
Note: Return stock as late shipping. Please see actual photo for details.
JobItemInvList: 240549
Description:
This is a three-time controller into the evening (evening) working time ,an interval of rest or pause time,Dawn working time (morning light function),the user can according to their needs set a different time.
MPPT 10A-40A
Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30%
1.LCD screen display
2.Easy operation interface
3.MPPT+PWM charging mode（Controller Provided MPPT Maximum power point tracking Function,charging mode is PWM)
4.Parameter user can reset
5.A key to open and close the load
6.A key to restore the factory settings
7.Battery reverse discharge protection
8.Battery reverse polarity protection
9.Battery under voltage protection
10.Overload, short-circuit protection
11.Automatic temperature compensation function
12.Can charge and discharge at the same time, Always keep the battery in full status

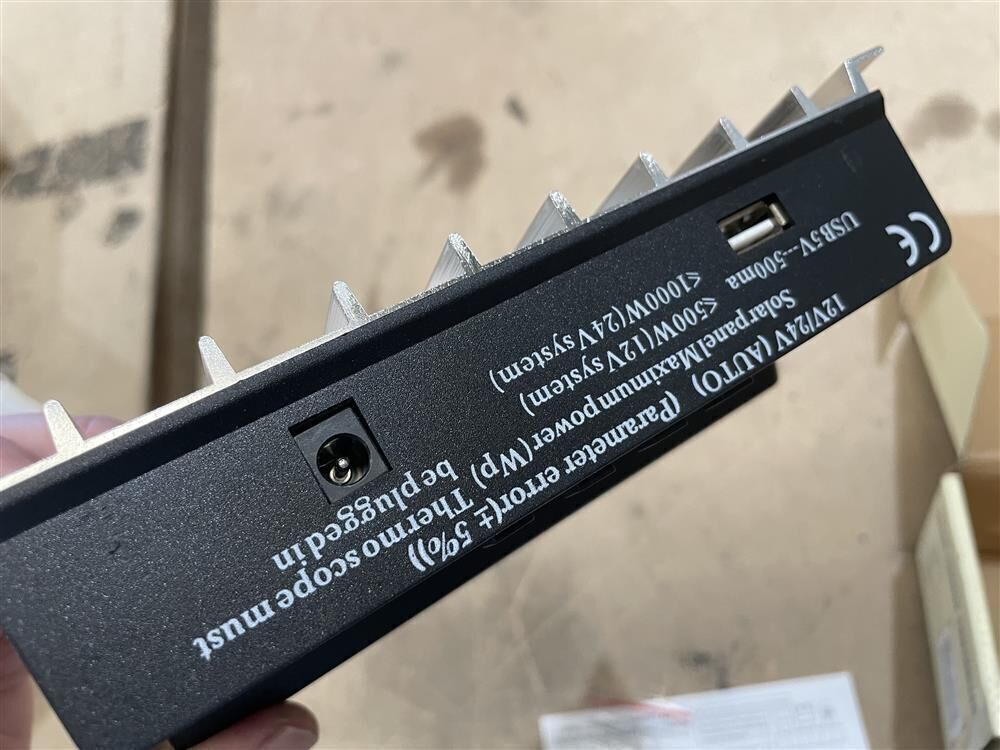

Note: Only MPPT 30A and 40A with USB Port.
Product introduction
|

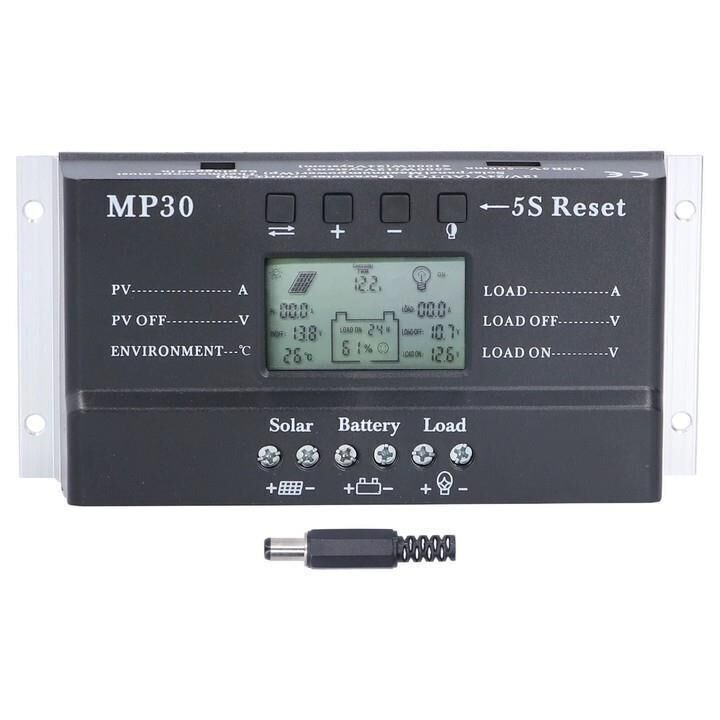

LCD screen display |
Battery reverse discharge protection |
|
Easy operation interface |
Battery reverse polarity protection |
|
MPPT+ PWM charging mode |
Battery under voltage protection |
|
Parameter user can reset Overload |
Short-circuit protection |
|
A key to restore the factory settings |
USB 5V charging (for 500mA) for mobile phone(Only for 30A and 40A) |
|
A key to open and close the load |
Automatic temperature compensation function |
Data Sheet
|
Parameters / Model |
T10 |
T20 |
T30 |
T40 |
|
Maximum power current |
12A |
20A |
30A |
40A |
|
Installation Lin mm2 |
4mm2 |
8mm2 |
10mm2 |
12mm2 |
|
Installation Line(AWG) |
10(AWG) |
8(AWG) |
7(AWG) |
6(AWG) |
|
Weight |
280g |
300g |
475g |
480 |
|
Dimensions |
143×89×46 mm |
187*97*61 mm |
||
|
System load loss |
≤13mA |
|||
|
Loop Buck |
≤100mV |
|||
Specification
|
Battery float voltage |
13.8V 12V system /27.6V 24V system |
|
Battery under voltage) protection |
10.6V 12V system /21.2V 24V system |
|
Battery (under voltage) recovery voltage |
12.6V 12V system /25.2V 24V system |
|
Charge mode |
MPPT+PWM MODE |
|
Operating Temperature |
-10~60°C |
|
Storage Temperature |
-30~70°C |
|
Humidity requirements |
≤90%, No condensation |
|
Temperature compensation |
-4mV/Cell/°C |
|
Temperature Probe (built components) |
NTC 100K thermistats |
|
Maximum open circuit voltage of the solar panel |
18V-24V 12V system 36V-48V 24V system) |
|
Solar panels maximum open circuit voltage (V) |
≤48V |
(Cases) 12V system standard configuration
|
The peak voltage of the solar cell panel |
18V-25V |
18V-25V |
18V-25V |
18V-25V |
|
Peak power of solar cell panel |
50W-130W |
100W-260W |
200W-380W |
≤500W |
|
Model |
T10 |
T20 |
T30 |
T40 |
|
Battery standard voltage |
12V |
12V |
12V |
12V |
|
Battery capacity |
≥100AH |
≥200AH |
≥300AH |
≥400AH |
|
Installation Lin mm2 |
4mm2 |
8mm2 |
10mm2 |
12mm2 |
|
Installation Line(AWG) |
10(AWG) |
8(AWG) |
7(AWG) |
6(AWG) |
