RETURNs 260Amp Inverter Welder MIG MAG TIG ARC MMA Gas Gasless DC Power Welding Machine

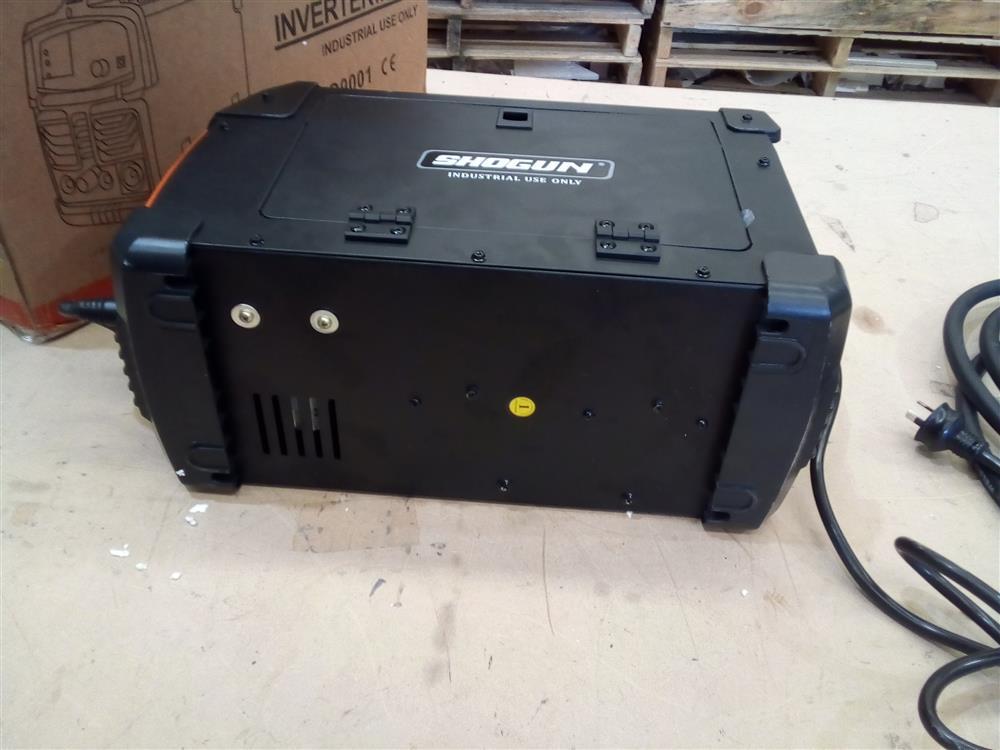

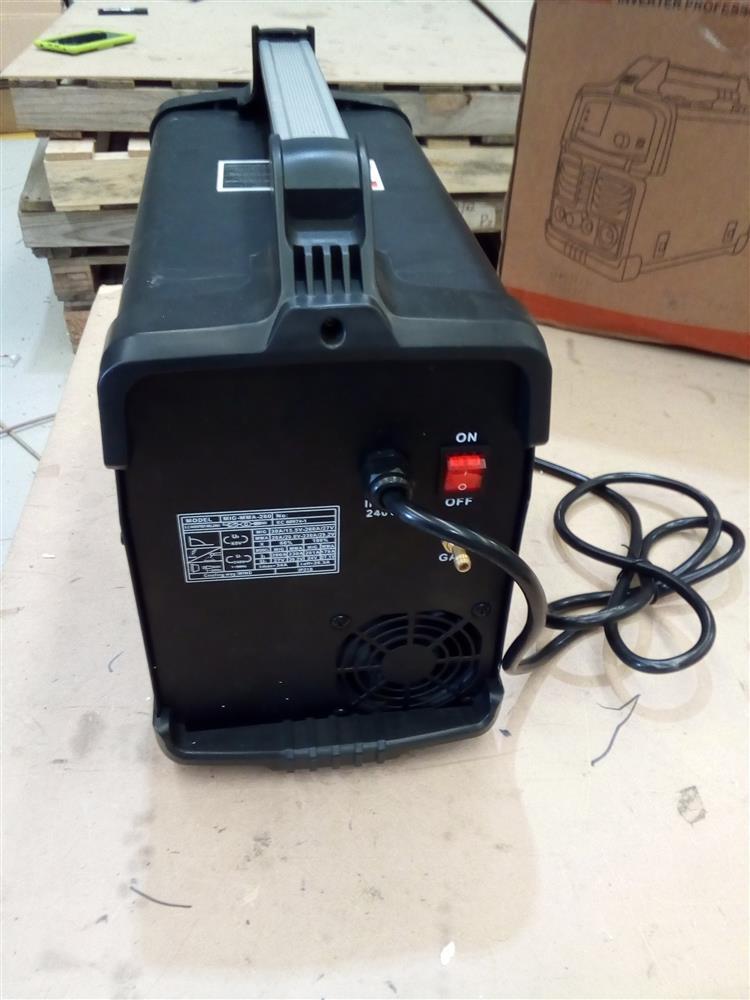

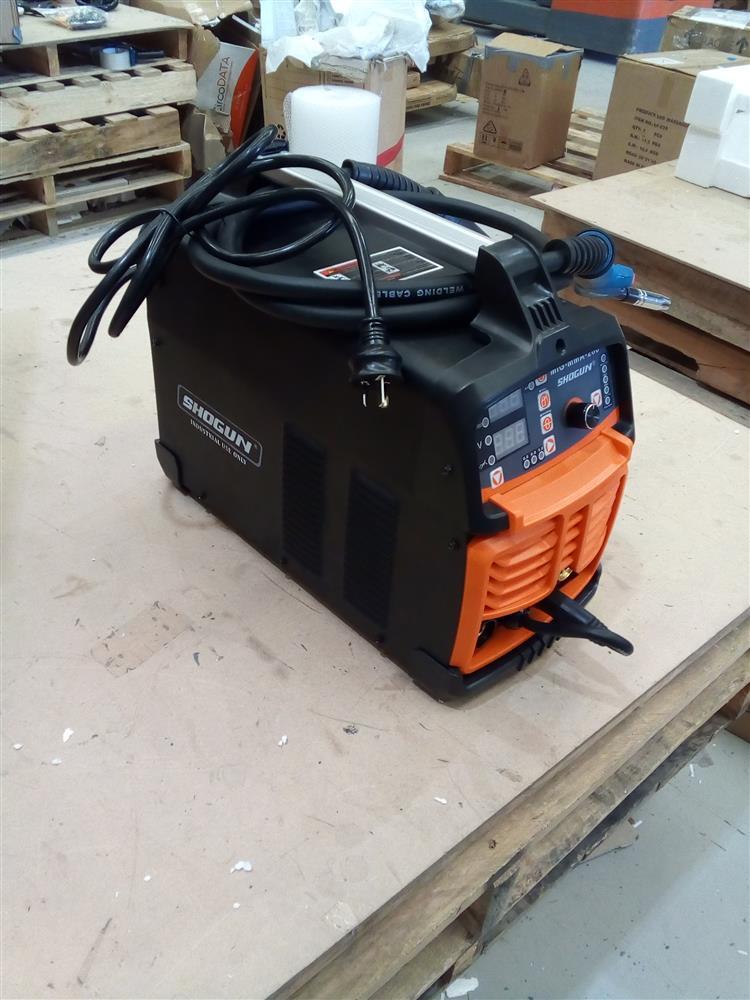

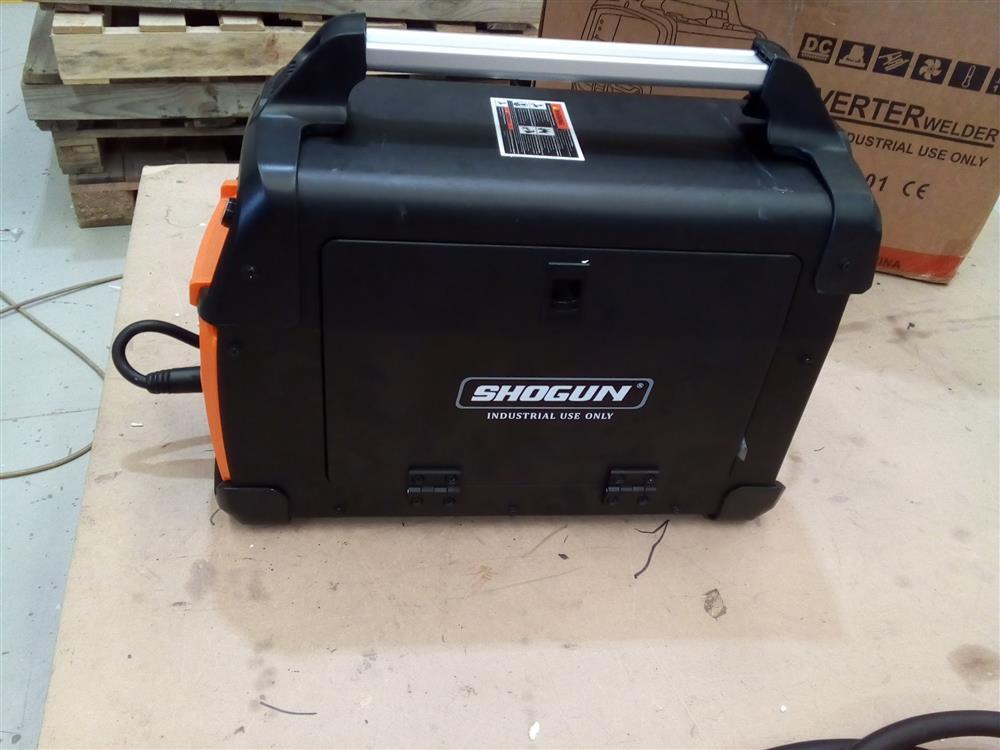

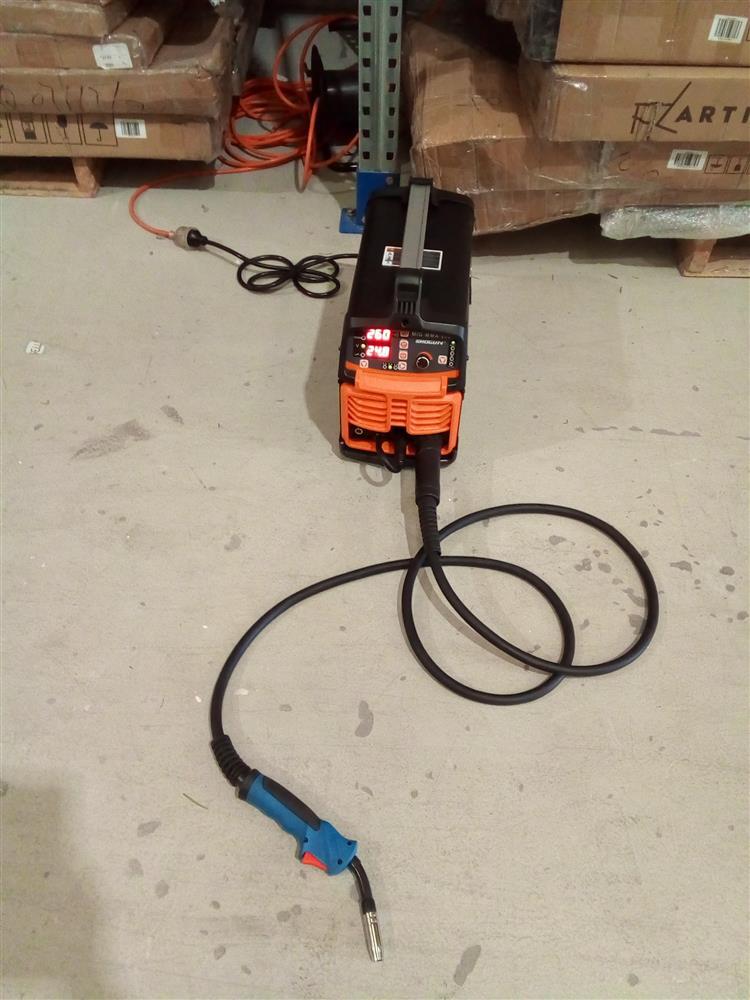

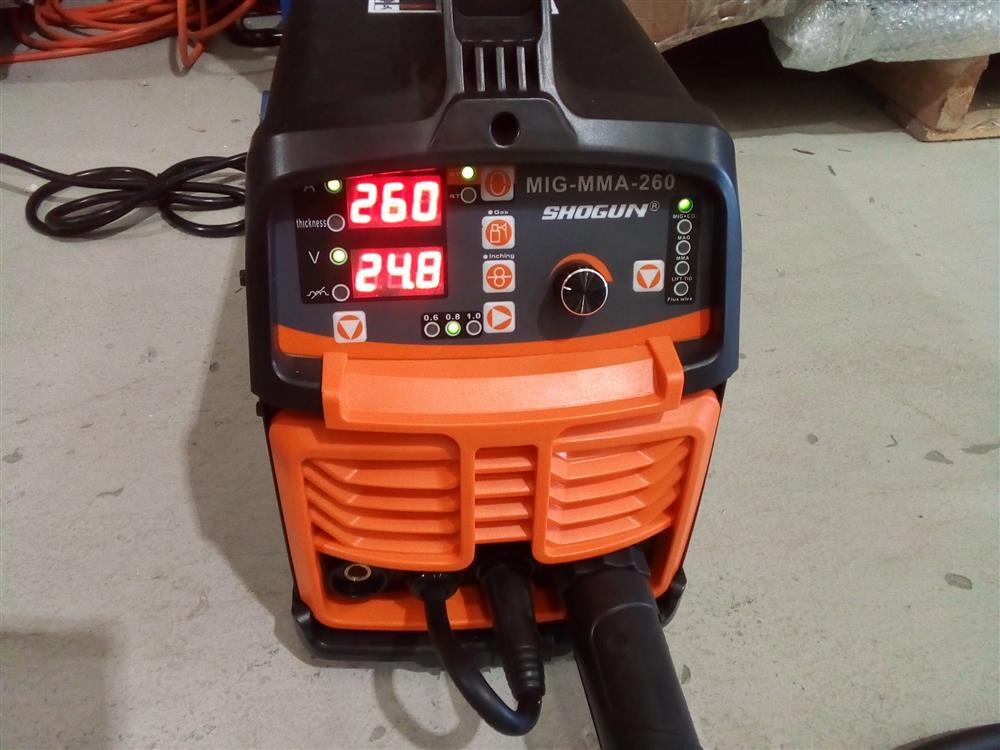

Note: Return stock due to change of mind. Note: some scratches on the surface of the item. Please see actual photo for more detail.
Product Description:

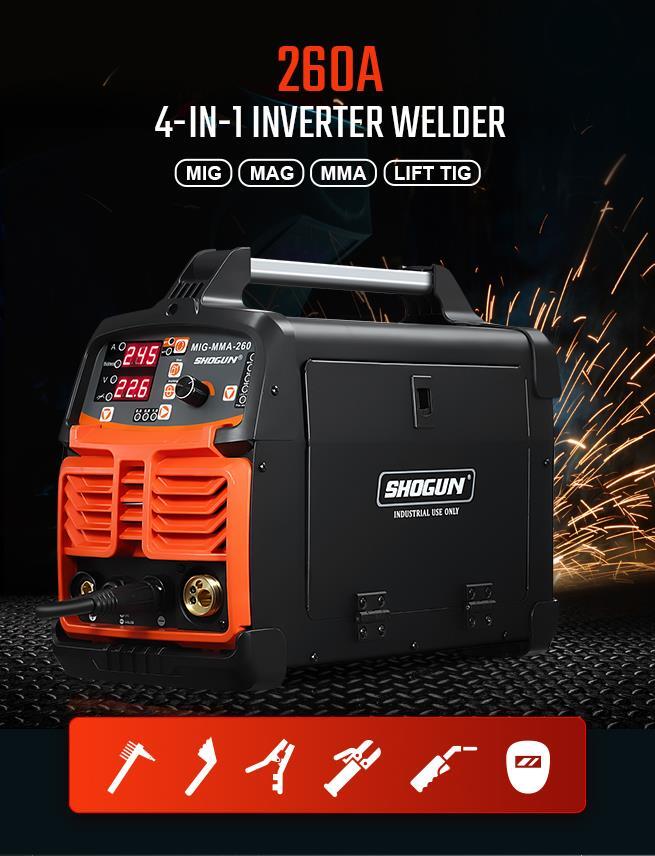

The advanced All IN One DC Inverter Welder is a powerful helper in welding. The welding machine boasts versatile technology, including MIG/MAG/MMA/TIG LIFT/GASLESS FULUX technology, with current ranging from 50 to 260Amp. The IGBT inverter technology attributes to a reliable quality and stable performance, and the electric reactor control allows for a welding process with little splash and beautiful welding seam. The welder can handle a wide range of metals, such as steel, iron, stainless steel, copper, and more. To against over-current, over-voltage and over-heating, an automatic protection system as well as a high-speed cooling fan are designed. The closed-circuit feedback with constant voltage output also works well in preventing voltage fluctuation. The 2T/4T torch control and self-locking make it convenient to focus on the welding job. Enjoy the great pleasure out of a perfect welding job with this All IN One DC Inverter Welder.
Features:
- Latest MIG/MAG/MMA/TIG LIFT/GASLESS FULUX technology

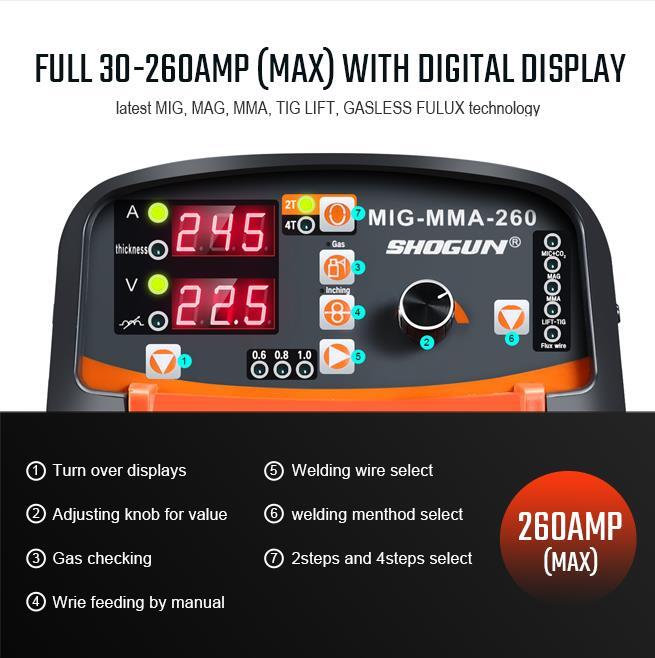

- Full 50-260Amp(max) with digital display
- IGBT inverter technology, current mode control, reliable quality and stable performance
- Extra anti-viscous heat arc with thrust function
- MIG/MAG welding process with gas-less flux or gas shielded welding wires.
- Suitable for a wide range of metals: steel, Iron, stainless steel copper, and more
- Electric reactor control, stable welding process with little splash, deep welding pool and beautiful welding seam
- Automatic Protection Function for Over-current, Over-voltage and Over-heating
- Closed circuit feedback with constant voltage output, good resistance to voltage fluctuation

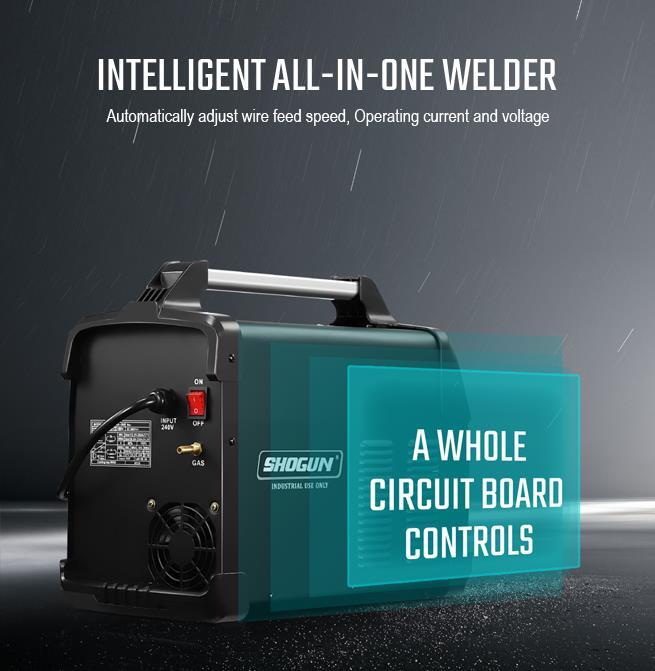

- Intelligent all-in-one welder, automatically adjust wire feed speed, operating current and voltage
- Accepts 5kg spools from 0. 6-1mm

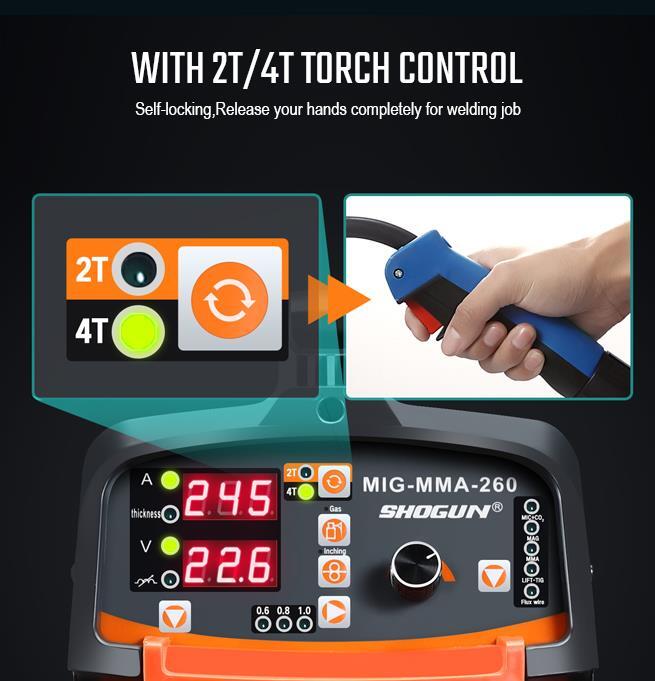

- With 2T/4T torch control, Self-locking, release your hands completely for welding job.
- Intelligent high-speed cooling fan design, large radiator, ensuring better performance and durability
- Slow wire-feeding for arc start and tip ball removing after welding ensure high success rate of arc start
Specification:
|
Machine type |
Intelligent all-in-one welder |
|
Power voltage |
240V 50Hz (15 A plug) |
|
No-load voltage |
65V |
|
Current range |
50-260 Amps (max) |
|
Power factor: |
0.93 |
|
Efficiency |
85%(temperature affects) |
|
Protection class |
IP23 |
|
Insulation class |
F |
|
Rated duty cycle |
60% |
|
Welder type |
MIG/MAG/MMA/TIG LIFT/GASLESS FULUX |
|
Type of wire feeder |
Built-in 2 roller single drive |
|
Operation |
Gas and gasless |
|
Wire speed |
2-15m/min |
|
Gas post-flow time |
1±0.5s |
|
Welding spool |
0.6mm-1mm |
|
Power plug |
Australian standard |
|
Package |
1 x inverter welder 1 x electrode holder 1 x earth clamp 1 x welder mask 1 x wire brush 1 x user manual |
|

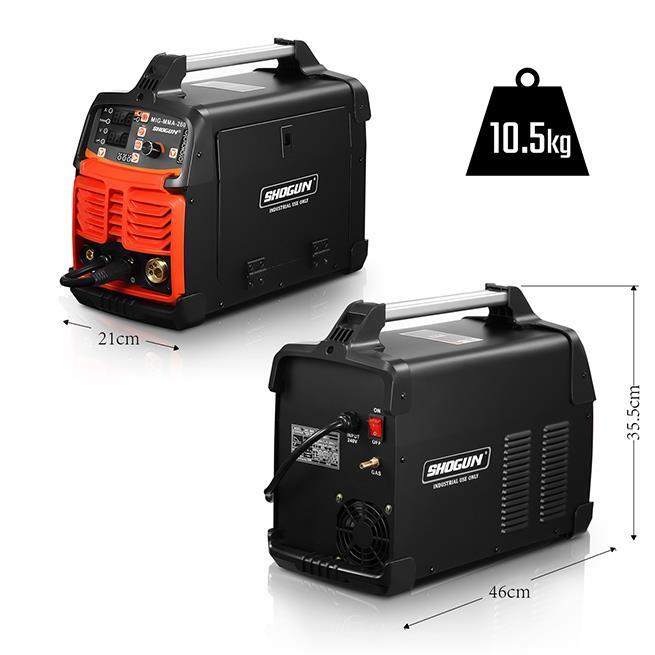

Carton dimensions |
56x28x42cm |
|
Carton weight |
14.5kg |
| SKU | 197863_D |
| Brand | Shogun |
| MPN | 197863 |
| Shipping Weight | 11.0000kg |
| Shipping Width | 0.410m |
| Shipping Height | 0.270m |
| Shipping Length | 0.560m |
