Shogun Air Compressor Electric Tyre Inflator Pump Tank Belt Drive Portable Tool
Note: Item is returned stock due to broken packaging, please refer to photo for more detail
Product
The top-quality electric air compressor is the best solution for a range of inflation projects, home improvement and garage projects. The air compressor offers extra-efficient and reliable operation for multiple tasks around the home or workshop. Powered by motor with a large capacity air tank, the air compressor offers extra-efficient and reliable operation for multiple tasks around the home or workshop.You can be sure that this unit will provide enough high-pressure to accomplish your jobs easier and faster. And it is easy to store away and transport with four wheels.
Model A-3HP 80L
- Powerful 3HP motor
- Large 80L tank capacity
- Max working pressure of 115Psi
- Flow rate up to a speed of 420L/Min
- Dual vents with two pressure gauges
- Robust cast iron double-piston construction for high efficiency
- Twin V-BELT system for long service life
- Superior cooling ensures that this unit can work continuously
- Fully portable design with all-terrain wheels and dual handles
- Equipped with a starting switch, silencer, anti-vibration rubber feet and oil immersion lens
- Ideal for supplying high-pressure clean air to inflate tyres, fill gas cylinders, submerged surface supplied diver and power pneumatic tools
- Tips:The machine has been flushed out of oil before leaving the factory. Please confirm that
compressor oil has been properly added before use.
Model B-5HP 120L
- Powerful 5HP copper motor
- Large 120L tank capacity
- Max working pressure of 115Psi
- Flow rate up to a speed of 480L/Min
- Dual vents with pressure gauges
- Robust cast iron triple-piston construction for high efficiency
- Twin V-BELT system for long service life
- Superior cooling ensures that this unit can work continuously
- Four wheels for easy movement
- Equipped with a starting switch, silencer, copper ball valve and oil immersion lens
- Ideal for supplying high-pressure clean air to inflate tyres, fill gas cylinders, submerged surface supplied diver and power pneumatic tools
- Tips:The machine has been flushed out of oil before leaving the factory. Please confirm that
compressor oil has been properly added before use.
Model C-3HP 150L
- Powerful copper motor
- Large 150L capacity, true CE standard tank
- Pressure regulator with gauge and oil-water separator
- Pressure switch with gauge and relief valve
- High efficiency with robust cast iron double pump construction
- Twin V-BELT system, long service life
- Superior cooling ensures this unit works for a long time
- Equipped with front universal wheels and two rear wheels for easy movement

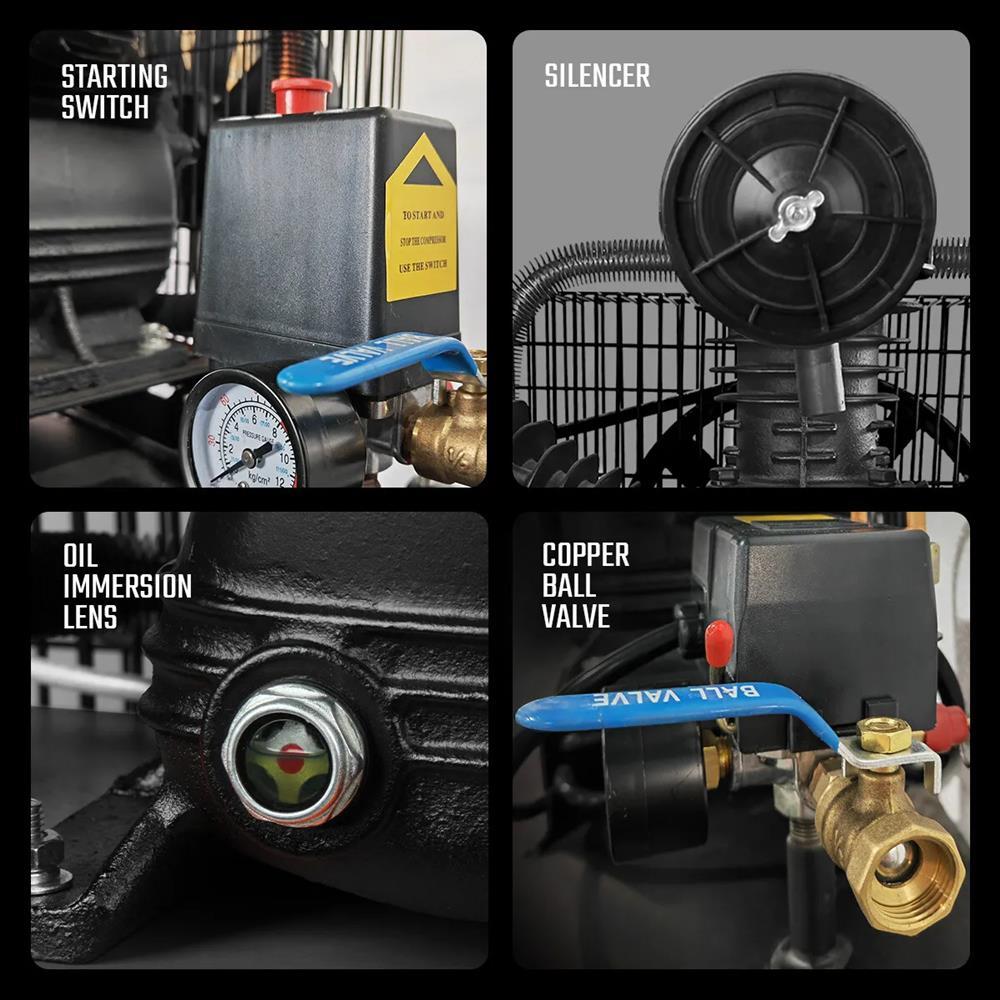

- Equipped with starting switch, silencer, copper ball valve and oil immersion lens
- Ideal for supplying high-pressure clean air to inflate tyres, fill gas cylinders, submerged surface supplied diver and power pneumatic tools.

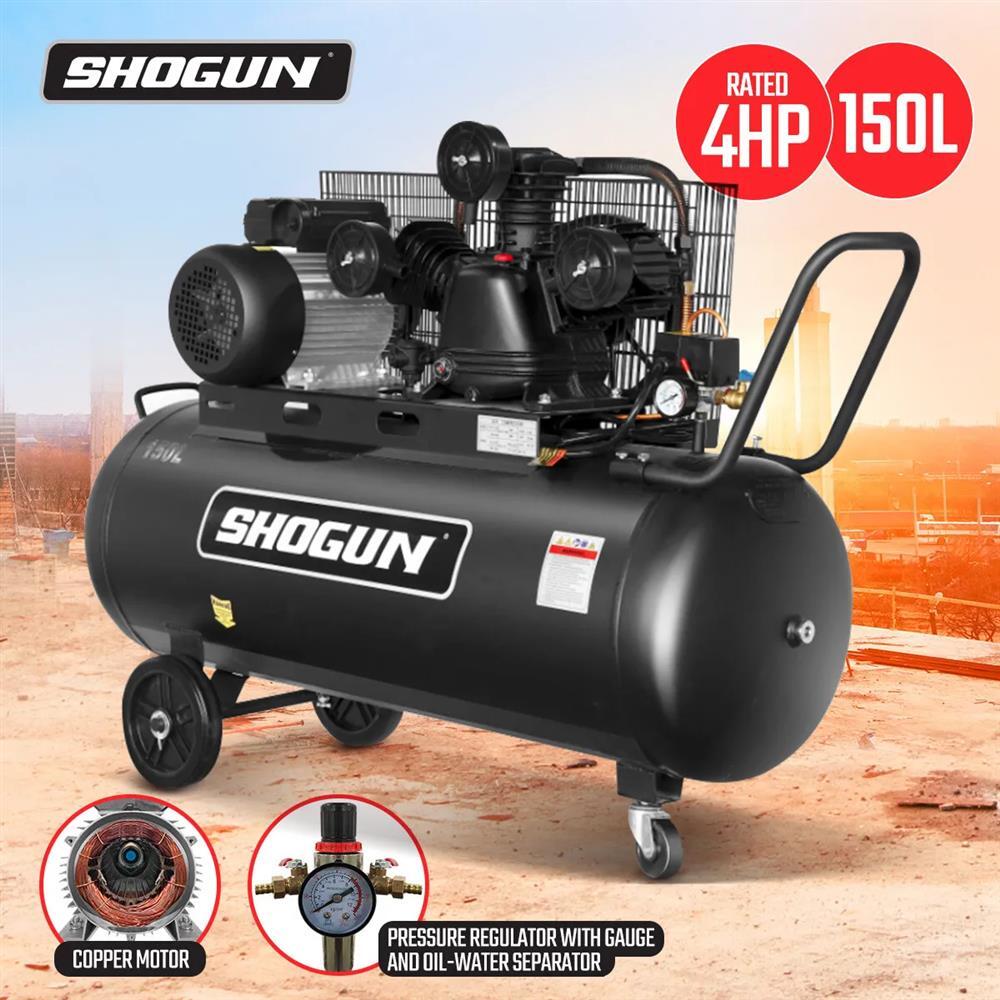

Model D-4HP 150L

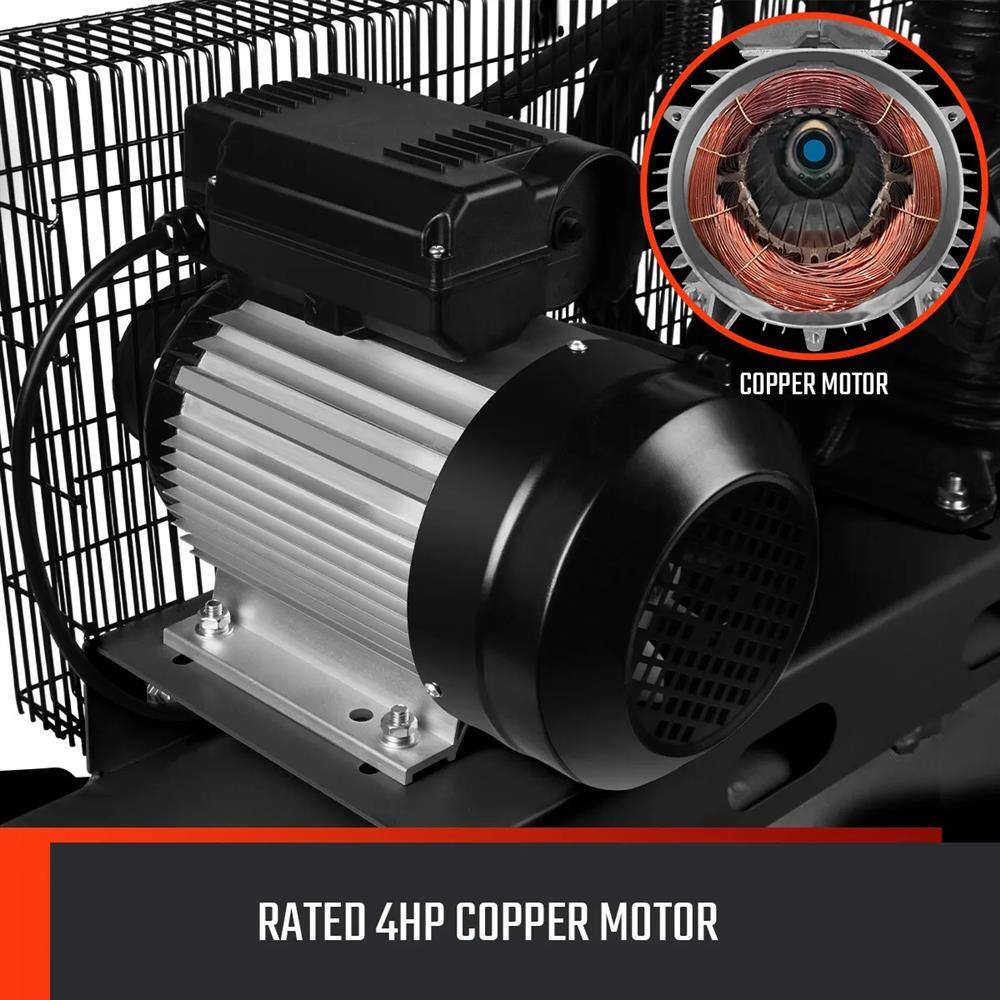

- Powerful copper motor

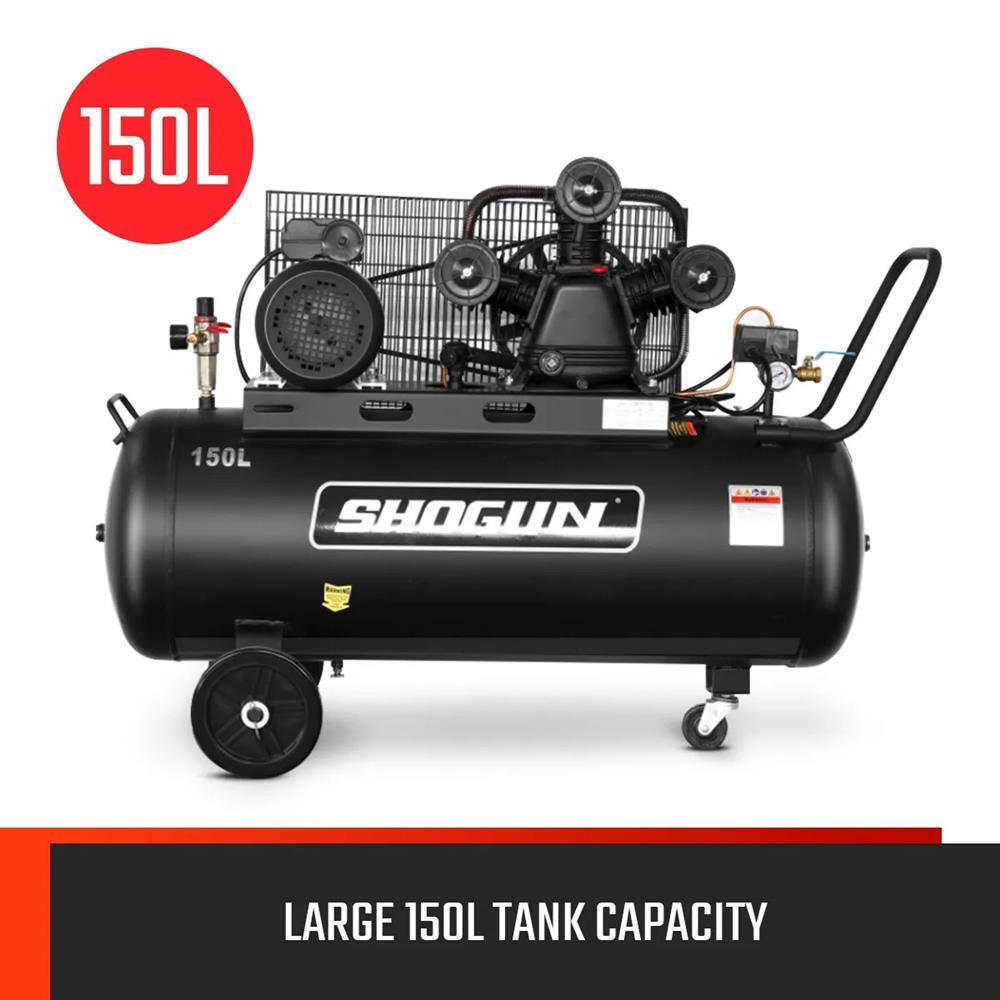

- Large 150L capacity, true CE standard tank

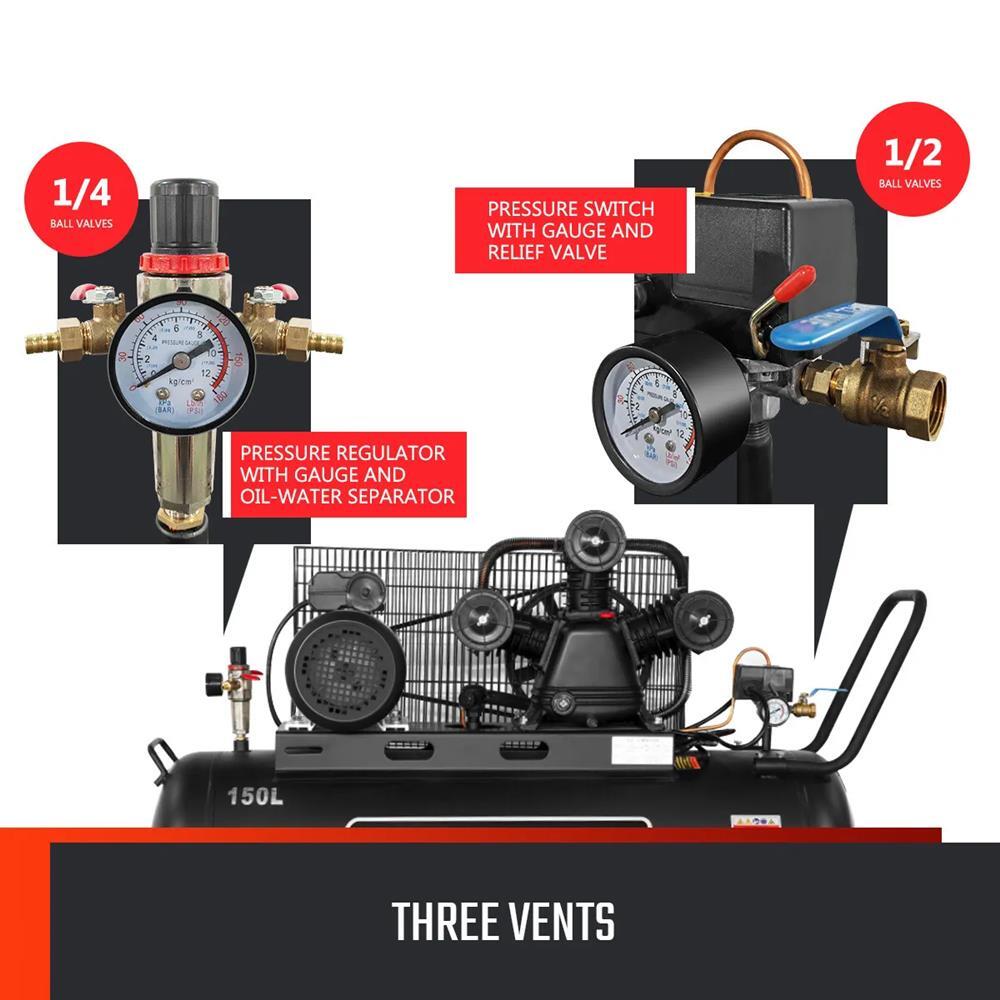

- Pressure regulator with gauge and oil-water separator
- Pressure switch with gauge and relief valve
- High efficiency with robust cast iron triplex pump construction
- Twin V-BELT system, long service life
- Superior cooling ensures this unit works for a long time
- Equipped with front universal wheels and two rear wheels for easy movement
- Equipped with starting switch, silencer, copper ball valve and oil immersion lens
- Ideal for supplying high-pressure clean air to inflate tyres, fill gas cylinders, submerged surface supplied diver and power pneumatic tools.
Model E-4HP 200L
- Powerful copper motor
- Large 200L capacity, true CE standard tank
- Pressure regulator with gauge and oil-water separator
- Pressure switch with gauge and relief valve
- High efficiency with robust cast iron triplex pump construction
- Twin V-BELT system, long service life
- Superior cooling ensures this unit works for a long time
- Equipped with front universal wheels and two rear wheels for easy movement
- Equipped with starting switch, silencer, copper ball valve and oil immersion lens
- Ideal for supplying high-pressure clean air to inflate tyres, fill gas cylinders, submerged surface supplied diver and power pneumatic tools.
Model F-4HP 200L
- Large 200L capacity, true CE standard tank
- Pressure regulator with gauge and oil-water separator
- Pressure switch with gauge and relief valve
- High efficiency with robust cast iron triplex pump construction
- Twin V-BELT system, long service life
- Superior cooling ensures this unit works for a long time
- Equipped with front universal wheels and two rear wheels for easy movement
- Equipped with starting switch, silencer, copper ball valve and oil immersion lens
- Ideal for supplying high-pressure clean air to inflate tyres, fill gas cylinders, submerged surface supplied diver and power pneumatic tools.
Specification
Capacity | Model A-3HP 80L |
Input Voltage | 240V/50Hz |
Max Power | 3HP |
Tank Capacity | 80L |
Rated Speed | 1050RPM |
Flow Rate | 420L/min |
Max Pressure | 8 Bar, 115 Psi |
Cylinder | 2 |
Power Plug | Australian Standard |
Package |
|
Capacity | Model B-5HP 120L |
Input Voltage | 240V/50Hz |
Max Power | 5HP |
Tank Capacity | 120L |
Rated Speed | 1050RPM |
Flow Rate | 480L/min |
Max Pressure | 8 Bar, 115 Psi |
Cylinder | 3 |
Power Plug | Australian Standard |
Package |
|
Capacity | Model C-3HP 150L |
Input Voltage | 220-240V/50Hz |
Rated Power | 3HP |
Rated Speed | 980RPM |
Rated Flow Rate | 250L/min |
Tank Capacity | 150L |
Max Pressure | 8Bar, 115Psi |
Cylinder | 2 |
Outlet | 2 x 1/4" Ball Valve + 1 x 1/2" Ball Valve |
Motor | Copper |
Oil-water Separator | Included |
Power Plug | Australian Standard |
Tips | Real parameter, no makeup |
Package | 1 x 150L Air Compressor 1 x User Manual |
Capacity | Model D-4HP 150L |
Input Voltage | 220-240V/50Hz |
Rated Power | 4HP |
Rated Speed | 930RPM |
Rated Flow Rate | 360L/min |
Tank Capacity | 150L |
Max Pressure | 8Bar, 115Psi |
Cylinder | 3 |
Outlet | 2 x 1/4" Ball Valve + 1 x 1/2" Ball Valve |
Motor | Copper |
Oil-water Separator | Included |
Power Plug | Australian Standard |
Tips | Real parameter, no makeup |
Package | 1 x 150L Air Compressor 1 x User Manual |
Capacity | Model E-4HP 200L |
Input Voltage | 220-240V/50Hz |
Rated Power | 4HP |
Rated Speed | 930RPM |
Rated Flow Rate | 360L/min |
Tank Capacity | 200L |
Max Pressure | 8Bar, 115Psi |
Cylinder | 3 |
Outlet | 2 x 1/4" Ball Valve + 1 x 1/2" Ball Valve |
Motor | Copper |
Oil-water Separator | Included |
Power Plug | Australian Standard |
Tips | Real parameter, no makeup |
Package | 1 x 200L Air Compressor 1 x User Manual |
Capacity | Model F-4HP 200L |
Input Voltage | 220-240V/50Hz |
Rated Power | 4HP |
Rated Speed | 930RPM |
Rated Flow Rate | 360L/min |
Tank Capacity | 200L |
Max Pressure | 8Bar, 115Psi |
Cylinder | 3 |
Outlet | 2 x 1/4" Ball Valve + 1 x 1/2" Ball Valve |
Oil-water Separator | Included |
Power Plug | Australian Standard |
Tips | Real parameter, no makeup |
Package | 1 x 200L Air Compressor 1 x User Manual |
